Body Double™ Dispensing Gun

BDDispensegun ⓘ DAC27464-C290-964E-B8AB-637999D98CF9
Platinum Cure Silicone

Mix and apply materials  like Body Double®, Dragon Skin®, Ecoflex®, and Mold Star® from 400 ml cartridges using a static mixer.

  • Manual and electric options
  • Efficient for fast-setting materials
  • Convenient for frequent use
€ 137.31

(€ 113.48 without 21% VAT)

In stock

Description

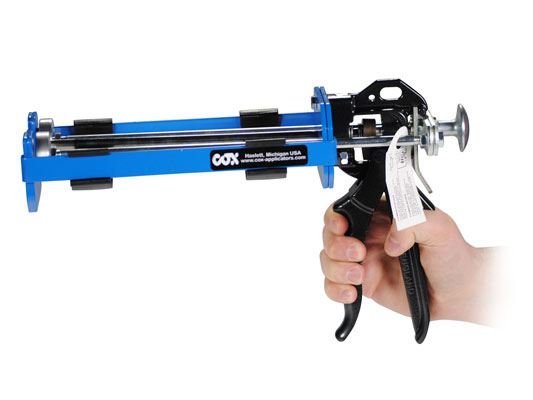

These guns are designed to hold 400 ml cartridges of materials like Body Double®, Dragon Skin®, Ecoflex®, and Mold Star®. They facilitate the mixing of Parts A & B through a static mixing tube. The manual version operates by squeezing the handles, while the electric version is triggered for operation, making it suitable for frequent molders and larger projects.

Features

  • Convenience and Speed: Ideal for on-the-fly molding applications.
  • Time Saver: Efficiently mixes materials through a static mixer, saving time when working with fast-setting materials.

Product Options

  • Manual Dispensing Guns: For dispensing 2-component material in cartridges.
  • 400mL Electric Dispensing Gun: For dispensing 2-component material in cartridges.
  • 400 mL Static Mixers: For packed-cartridge liquid products.

Instructions

  • Insert the 400 mL dual cartridge into the dispensing gun and secure it in place.
  • Remove the cartridge cap and attach a compatible static mixing tube.
  • Slowly squeeze the handles (manual gun) or pull the trigger (electric gun) to begin dispensing.
  • The gun automatically pushes Parts A and B through the static mixer, blending the material evenly.
  • Dispense directly onto the surface or mold area as needed.
  • Release the pressure when finished, then discard the used mixer.
  • These guns are commonly used with materials such as Body Double, Dragon Skin, Ecoflex, and Mold Star from Smooth-On.

Available in Platinum Cure Silicone
Product Cure Time Shore A Hardness Specific Gravity Specific Volume Tensile Strength Shrinkage Die C Tear Strength Elongation At Break Mixed Viscocity Mix Ratio By Volume Mix Ratio By Weight Pot Life Color Mixed Viscocity Cure Time Pot Life Specific Volume Die C Tear Strength Specific Gravity Mix Ratio By Weight Shrinkage Mix Ratio By Volume Tensile Strength Elongation At Break Shore A Hardness
Body Double™ Standard Set 20 min. 25 1.17 g/cc 23.7 cu. in./lb. 525 psi <.001 in. / in. 40 pli 500 % Brushable 1A:1B 1A:1B 5 min. Purple Brushable 20 min. 5 min. 23.7 cu. in./lb. 40 pli 1.17 g/cc 1A:1B <.001 in. / in. 1A:1B 525 psi 500 % 25
Body Double™ SILK 20 min. 25 0.91 g/cc 30.4 cu. in./lb. - <.001 in. / in. - - Brushable 1A:1B 1A:1B 6 min. Green Brushable 20 min. 6 min. 30.4 cu. in./lb. - 0.91 g/cc 1A:1B <.001 in. / in. 1A:1B - - 25
Body Double™ Fast Set 7 min. 25 1.17 g/cc 23.7 cu. in./lb. 450 psi <.001 in. / in. 40 pli 500 % Brushable 1A:1B 1A:1B 90 sec. Aqua, Green Brushable 7 min. 90 sec. 23.7 cu. in./lb. 40 pli 1.17 g/cc 1A:1B <.001 in. / in. 1A:1B 450 psi 500 % 25
Body Double™ Release Cream - - - - - - - - - - - - - - - - - - - - - - - - -
Body Double™ Release Additive - - - - - - - - - - - - - - - - - - - - - - - - -
Body Double™ Dispensing Gun - - - - - - - - - - - - - - - - - - - - - - - - -
Body Double™ Mixing Tubes - - - - - - - - - - - - - - - - - - - - - - - - -
