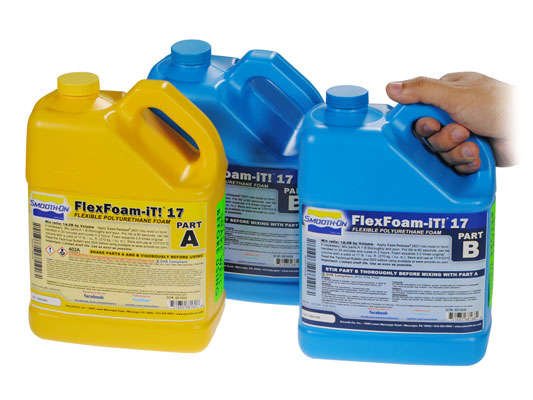

FlexFoam-iT!™ 17

ff17x ⓘ 7F2B9CE0-92F4-9E42-9A67-93162E636122
Foam

High-density, flexible polyurethane foam for strength and impact resistance with an expansion ratio of about 3.5x.

  • Density: 272 kg/m³ (17 lb/ft³)
  • Mix ratio: 1A:1B by volume
  • Expansion approximately: 3.5 times
  • Pot life: 60 seconds
  • Cure time: 4 hours
exclamation.svg health-hazard.svg

Danger

H315 - Causes skin irritation.
H317 - May cause an allergic skin reaction.
H319 - Causes serious eye irritation.
H332 - Harmful if inhaled.
H334 - May cause allergy or asthma symptoms or breathing difficulties if inhaled.
€ 252.66

(€ 208.81 without 21% VAT)

In stock

Description

This high-density, flexible polyurethane expanding foam is designed for applications requiring enhanced strength, durability, and impact resistance while maintaining flexibility.

With a density of approximately 272 kg/m³ (17 lb/ft³), it produces a tougher, more load-bearing foam than lower-density grades, making it suitable for professional prop making, special effects, industrial cushioning, structural void filling, and protective components.

FlexFoam-iT!™ 17 mixes at a 1A:1B ratio by volume (approximately 100A:90B by weight), facilitating straightforward and repeatable processing.

Once combined, the material offers a pot life of about 60 seconds, requiring efficient mixing and pouring, but enabling fast production cycles.

The foam expands to roughly 3.5 times its original liquid volume, filling molds and cavities evenly while maintaining a controlled cell structure.

Parts reach a handling time of around 60 minutes, after which they can be safely demolded, trimmed, or further assembled without deformation.

Full cure is typically achieved in about 4 hours, at which point the foam reaches its final physical properties.

The foam cures to a white, resilient form that can be cut, sanded, drilled, or painted, and it accepts common colorants if pigmentation is required.

Its higher density provides improved tear resistance, compression strength, and long-term durability compared to lighter foams, making it suitable for rugged props, repeated-use padding, ergonomic supports, and semi-structural elements where reliability and toughness are critical.

Instructions

  • Mix at 1A:1B by volume (approximately 100A:90B by weight) until uniform.
  • Pour immediately, as the working time is approximately 60 seconds.
  • The material expands to about 3.5 times its original volume, so allow space in the mold.
  • Do not disturb during the rise.
  • Demold after approximately 60 minutes.
  • Full cure is achieved in about 4 hours.
  • Use clean, dry molds and a release agent if needed.
  • The foam can be trimmed, sanded, or painted after curing.
  • Wear gloves, avoid moisture, and ensure good ventilation.

Specifications

Color White
Mixed Viscocity 1,000 cps
Cure Time 2 hours
Pot Life 60 seconds
Specific Volume 93 cu. in./lb.
Specific Gravity 0.27 g/cc
Expansion 3.5 times
Mix Ratio By Weight 100A:185B
Foam Density 17 lb/ft³
Mix Ratio By Volume 1A:2B
Handling Time 30 minutes
Available in Foam
Product Handling Time Cure Time Specific Gravity Specific Volume Expansion Foam Density Mixed Viscocity Mix Ratio By Volume Mix Ratio By Weight Pot Life Color Mixed Viscocity Cure Time Pot Life Specific Volume Specific Gravity Expansion Mix Ratio By Weight Foam Density Mix Ratio By Volume Handling Time
FlexFoam-iT!™ III 25 min. 2 h. 0.05 g/cc 504 cu. in./lb. 15 times 3 lb/ft³ 1,000 cps 1A:2B 57.5A:100B 35 sec. White 1,000 cps 2 h. 35 sec. 504 cu. in./lb. 0.05 g/cc 15 times 57.5A:100B 3 lb/ft³ 1A:2B 25 min.
FlexFoam-iT!™ IV Tuff Stuff 45 min. 2 h. 0.06 g/cc 420 cu. in./lb. 13 times 4 lb/ft³ 1,000 cps - 80A:100B 30 sec. - - - - - - - - - - -
FlexFoam-iT!™ V 45 min. 2 h. 0.08 g/cc 315 cu. in./lb. 11 times 5 lb/ft³ 1,000 cps 1A:1B 105A:100B 50 sec. White 1,000 cps 2 h. 50 sec. 315 cu. in./lb. 0.08 g/cc 11 times 105A:100B 5 lb/ft³ 1A:1B 45 min.
FlexFoam-iT!™ 6 Pillow Soft 60 min. 2 h. 0.09 g/cc 280 cu. in./lb. 10 times 6 lb/ft³ 1,000 cps 1A:1B 105A:100B 35 sec. White 1,000 cps 2 h. 35 sec. 280 cu. in./lb. 0.09 g/cc 10 times 105A:100B 6 lb/ft³ 1A:1B 60 min.
FlexFoam-iT!™ 7 FR 60 min. 2 h. 0.11 g/cc 229 cu. in./lb. 8 times 7 lb/ft³ 1,000 cps 1A:1B 100A:88B 35 sec. White 1,000 cps 2 h. 35 sec. 229 cu. in./lb. 0.11 g/cc 8 times 100A:88B 7 lb/ft³ 1A:1B 60 min.
FlexFoam-iT!™ VIII Pillow Soft 25 min. 2 h. 0.13 g/cc 194 cu. in./lb. 7 times 8 lb/ft³ 1,000 cps 1A:2B 52.6A:100B 35 sec. White 1,000 cps 2 h. 35 sec. 194 cu. in./lb. 0.13 g/cc 7 times 52.6A:100B 8 lb/ft³ 1A:2B 25 min.
FlexFoam-iT!™ X 45 min. 2 h. 0.16 g/cc 157 cu. in./lb. 6 times 10 lb/ft³ 1,000 cps 1A:1B 105A:100B 50 sec. White 1,000 cps 2 h. 50 sec. 157 cu. in./lb. 0.16 g/cc 6 times 105A:100B 10 lb/ft³ 1A:1B 45 min.
FlexFoam-iT!™ 14 45 min. 2 h. 0.22 g/cc 114 cu. in./lb. 4 times 14 lb/ft³ 1,000 cps 1A:2B 100A:190B 60 sec. White 1,000 cps 2 h. 60 sec. 114 cu. in./lb. 0.22 g/cc 4 times 100A:190B 14 lb/ft³ 1A:2B 45 min.
FlexFoam-iT!™ 15 Tuff Stuff SLOW 90 min. 4 h. 0.24 g/cc 115 cu. in./lb. 4 times 15 lb/ft³ 1,000 cps 1A:2B 100A:185B 2 min. - - - - - - - - - - -
FlexFoam-iT!™ 17 30 min. 2 h. 0.27 g/cc 93 cu. in./lb. 3.5 times 17 lb/ft³ 1,000 cps 1A:2B 100A:185B 60 sec. White 1,000 cps 2 h. 60 sec. 93 cu. in./lb. 0.27 g/cc 3.5 times 100A:185B 17 lb/ft³ 1A:2B 30 min.
FlexFoam-iT!™ 23 FR 60 min. 2 h. 0.37 g/cc 68 cu. in./lb. 2 times 23 lb/ft³ 1,000 cps - 85A:100B 90 sec. White 1,000 cps 2 h. 90 sec. 68 cu. in./lb. 0.37 g/cc 2 times 85A:100B 23 lb/ft³ - 60 min.
FlexFoam-iT!™ 25 25 min. 2 h. 0.4 g/cc 63 cu. in./lb. 2 times 25 lb/ft³ 1,000 cps - 1A:2B 90 sec. White 1,000 cps 2 h. 90 sec. 63 cu. in./lb. 0.4 g/cc 2 times 1A:2B 25 lb/ft³ - 25 min.
Archery Target Repair Kit - - - - - - - - - - - - - - - - - - - - -
PUR E60 - - - - - - - - - - - - - - - - - - - - -
