Description

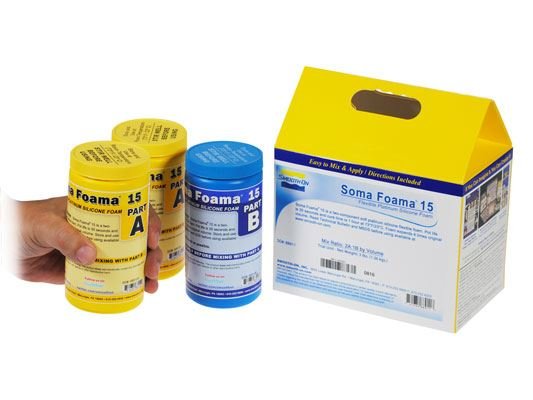

Soma Foama™ 15 is a soft, two-component platinum-silicone flexible foam that is versatile and easy to use.
It expands four times its original volume and develops a uniform cell structure with a density of 240 kg/m³.
Vibrant colors can be achieved by adding Silc-Pig™ silicone color pigments.
The cured foam is resistant to high heat (up to 176°C), water, UV, oxidation, and ozone degradation.
Features
Used for industrial and special effects applications such as:- foam-filled appliances
- padding/seat cushioning
- orthotics/orthopedics
- potting and encapsulation of electrical circuits
- vibration dampening.
Technical Properties
- Mix Ratio By Volume: 2A:1B
- Mix Ratio By Weight: 100A:47B
- Working time: 30 seconds
- Handling Time: 20 minutes
- Cure Time: 1 hour
- Specific Gravity: 0.24 g/cc
- Specific Volume: 1885 cm³/kg
- Color: White
- Foam Density: 240 kg/m³
- Expansion: 4 times
- Mixed Viscosity: 10,000 cps
Instructions
Storage and Use
Store and use at room temperature (23°C). Soma Foama™ 15 has a limited shelf life and should be used as soon as possible. Ensure good room ventilation. Wear safety glasses, long sleeves, and vinyl gloves to minimize contamination risk.
N.B. latex gloves will inhibit the cure of the rubber.
Cure Inhibition
Inhibition may occur with contaminants like latex, tin-cure silicone, sulfur clays, and certain wood surfaces. Test compatibility on a non-critical area.
Seal the object with a clear acrylic lacquer to prevent inhibition. Allow the sealer to dry before applying the rubber.
When in doubt, a small test application to determine suitability for your project is recommended.
When working with modeling clays that contain heavy amounts of sulfur, even a sealer will not suffice. Do a small scale test for compatibility before starting your project.
Applying A Release Agent
The foam may stick to some surfaces, which will necessitate the use of a release agent for demolding.
When casting into or over other platinum silicones, apply Ease Release™ 200 before applying the foam.
Lightly brush the release agent with a soft brush over all surfaces and let it dry for 15 minutes.
Mixing
Mix by hand or using a drill with a mixer attachment.
After dispensing Parts A and B into a mixing container, mix thoroughly for 30 seconds.
Stir quickly and deliberately, scraping the sides and bottom of the container. Avoid splashing material out.
Foam cures quickly; do not delay between mixing and pouring.
Elevated temperatures reduce pot life and cure time.
Warning
A small amount of hydrogen gas is released during the A:B reaction.
Use with adequate ventilation and avoid breathing fumes.
Do not smoke or have ignition sources nearby during mixing and pouring.
Pouring
For best results, pour the mixture in a single spot at the lowest point of the mold and let it level naturally.
Handling Strength
Handling strength is achieved in 20 minutes with full cure in 1 hour at room temperature.
Foam color will darken over time. Adding Silc-Pig™ silicone pigments helps stabilize the color of cured foam.
Best adhesion to other platinum silicones is achieved when poured against newly cured platinum silicone rubber.
Results May Vary
This material is subject to environmental temperature variations.
Conduct a small test to determine performance for your application.
Improve Surface Finish and Minimize Voids With Back Pressure
Use a board to cover the mold opening.
Drill three 2 cm (¾”) holes in the board, spaced a few cm apart. Ensure that the holes are over the mold cavity.
Apply Ease Release™ 200 to both sides of the board and into the holes.
Mix and pour foam into the mold cavity, place the board over the opening, and hold it firmly.
Foam will rise through the holes. After it stops growing, release the board.
Do not demold for at least 20 minutes.
Demold
After 20 minutes, cut excess material from the holes. Gently remove the board and casting.
