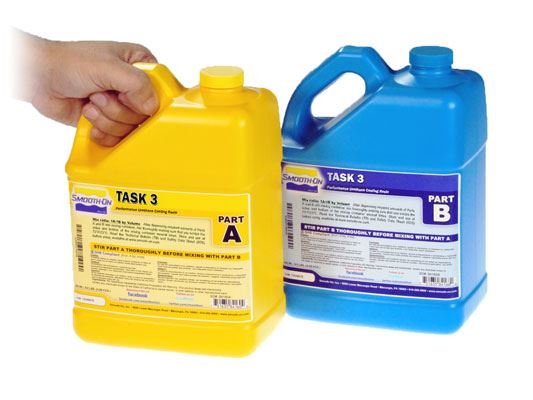

TASK™ 3

Description

This low viscosity casting resin offers superior physical and performance properties.

TASK™ 3 features a convenient 1A:1B by volume (115A:100B by weight) mix ratio and does not require vacuum degassing.

This resin is white with high tensile and flexural strength, and a high flexural modulus.

TASK™ 3 is suitable for industrial applications like pattern making and prototype model creation. Designed for casting up to 1.27 cm (½ inch) thick, it is available in various sizes.

Technical Properties

Mix Ratio By Volume: 1A:1B
Mix Ratio By Weight: 115A:100B
Pot Life: 20 minutes
Cure Time: 90 minutes
Shore Hardness: 80 D
Specific Gravity: 1.12 g/cc
Specific Volume: 0.89 cm³/g
Color: White
Tensile Strength: 45.8 MPa
Elongation @ Break: 6%
Tensile Modulus: 2,000 MPa
Flexural Strength: 65.5 MPa
Flexural Modulus: 1,986 MPa
Compressive Strength: 57.2 MPa
Compressive Modulus: 538 MPa
Heat Deflection Temp: 57°C
Shrinkage: 0.0025 mm/mm
Mixed Viscosity: 150 mPa·s

Instructions

Storage and Handling

Store and use materials in a warm environment at 23°C (73°F). These products have a limited shelf life and should be used promptly. All liquid urethanes are moisture sensitive. Use clean mixing tools and metal, glass, or plastic containers. Ensure a well-ventilated area and wear safety glasses, long sleeves, and rubber gloves.

Application

Conduct a small test application to determine suitability if performance is in question.

Applying A Release Agent

For surface compatibility, conduct a trial casting on a surface with a similar finish. Dry polyurethane, latex, or metal molds require a suitable release agent. Apply a liberal coat of release agent, brush lightly for thorough coverage, and let dry for 30 minutes.

Measuring

The mixing ratio is 1A:1B by volume or 115A:100B by weight. Dispense Part A into a mixing container, then add Part B.

Mixing

Store and use materials at 23°C. Shake Part A & Part B before use. Mix thoroughly, scraping the sides and bottom of the container. Avoid splashing. The product sets quickly, so do not delay between mixing and pouring.

Vacuuming

Vacuum degassing is not required. If chosen, subject the mixture to 29 h.i.g. mercury in a vacuum chamber until it rises, breaks, and falls. Allow for 3 to 4 times volume expansion.

Pouring

Pour the mixture at the lowest point of the mold to minimize air entrapment.

For Best Results

Use a pressure casting technique. Place the casting assembly in a pressure chamber at 4.2 kg/cm² for the full cure time.

Curing

Ensure adequate ventilation and avoid inhaling fumes. Let castings cool to room temperature before handling. Demold time depends on mass and mold configuration. For rotational or hollow castings, backfill with rigid foam for reinforcement.

Post Curing

Post-curing accelerates full cure and enhances properties. Cure at room temperature, then for 4-8 hours at 65-72°C. Allow to cool before handling.

Performance

Cured castings are rigid, durable, and resist moisture, moderate heat, and solvents. They can be machined, primed/painted, or bonded to other surfaces. Use a dust mask when machining. Suitable for outdoor display after priming and painting.

Specifications

Color	White
Mixed Viscocity	150 cps
Cure Time	90 minutes
Pot Life	20 minutes
Flexural Strength	9,500 psi
Flexural Modulus	288,000 psi
Specific Volume	24.7 cu. in./lb.
Specific Gravity	1.12 g/cc
Mix Ratio By Weight	115A:100B
Shrinkage	0.0025 in. / in.
Mix Ratio By Volume	1A:1B
Tensile Strength	6,650 psi
Elongation At Break	6 %
Shore D Hardness	80
Heat Deflection Temp	134 °F
Compressive Strength	8,300 psi
Tensile Modulus	290,000 psi
Compressive Modulus	78,000 psi

Available in Polyurethane Resin

Product	Cure Time	Specific Gravity	Specific Volume	Tensile Strength	Tensile Modulus	Compressive Strength	Compressive Modulus	Flexural Strength	Shrinkage	Heat Deflection Temp	Elongation At Break	Flexural Modulus	Mixed Viscocity	Mix Ratio By Volume	Mix Ratio By Weight	Pot Life	Shore D Hardness	Color	Mixed Viscocity	Cure Time	Pot Life	Flexural Strength	Flexural Modulus	Specific Volume	Specific Gravity	Mix Ratio By Weight	Shrinkage	Mix Ratio By Volume	Tensile Strength	Elongation At Break	Shore D Hardness	Heat Deflection Temp	Compressive Strength	Tensile Modulus	Compressive Modulus	Handling Time	Handling Time	Heat Deflection With Post Cure	Heat Deflection With Post Cure	Shore A Hardness	Die C Tear Strength	Hundred Percent Modulus	Hundred Percent Modulus	Die C Tear Strength	Shore A Hardness
TASK™ 2	60 min.	1.12 g/cc	24.7 cu. in./lb.	6,650 psi	290,000 psi	8,300 psi	78,000 psi	9,500 psi	0.005 in. / in.	134 °F	6 %	288,000 psi	150 cps	1A:1B	115A:100B	7 min.	80	White	150 cps	60 min.	7 min.	9,500 psi	288,000 psi	24.7 cu. in./lb.	1.12 g/cc	115A:100B	0.005 in. / in.	1A:1B	6,650 psi	6 %	80	134 °F	8,300 psi	290,000 psi	78,000 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 3	90 min.	1.12 g/cc	24.7 cu. in./lb.	6,650 psi	290,000 psi	8,300 psi	78,000 psi	9,500 psi	0.0025 in. / in.	134 °F	6 %	288,000 psi	150 cps	1A:1B	115A:100B	20 min.	80	White	150 cps	90 min.	20 min.	9,500 psi	288,000 psi	24.7 cu. in./lb.	1.12 g/cc	115A:100B	0.0025 in. / in.	1A:1B	6,650 psi	6 %	80	134 °F	8,300 psi	290,000 psi	78,000 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 4	16 h.	1.167 g/cc	23.9 cu. in./lb.	6,500 psi	130,000 psi	7,400 psi	75,000 psi	9,000 psi	0.0035 in. / in.	110 °F	4 %	204,000 psi	250 cps	-	100A:100B	20 min.	83	Ivory	250 cps	16 h.	20 min.	9,000 psi	204,000 psi	23.9 cu. in./lb.	1.167 g/cc	100A:100B	0.0035 in. / in.	-	6,500 psi	4 %	83	110 °F	7,400 psi	130,000 psi	75,000 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 5	24 h.	1.1 g/cc	25.2 cu. in./lb.	4,530 psi	200,000 psi	6,700 psi	83,000 psi	6,480 psi	0.007 in. / in.	145 °F	5 %	216,000 psi	600 cps	1A:1B	1A:1B	3 min.	77	Tan	600 cps	24 h.	3 min.	6,480 psi	216,000 psi	25.2 cu. in./lb.	1.1 g/cc	1A:1B	0.007 in. / in.	1A:1B	4,530 psi	5 %	77	145 °F	6,700 psi	200,000 psi	83,000 psi	15 min.	15 min.	-	-	-	-	-	-	-	-
TASK™ 6	24 h.	1.07 g/cc	25.9 cu. in./lb.	5,200 psi	146,000 psi	5,570 psi	65,000 psi	6,200 psi	0.0031 in. / in.	162 °F	4 %	182,500 psi	800 cps	1A:1B	1A:1B	7 min.	75	Tan	800 cps	24 h.	7 min.	6,200 psi	182,500 psi	25.9 cu. in./lb.	1.07 g/cc	1A:1B	0.0031 in. / in.	1A:1B	5,200 psi	4 %	75	162 °F	5,570 psi	146,000 psi	65,000 psi	75 min.	75 min.	-	-	-	-	-	-	-	-
TASK™ 7	10 min.	1.2 g/cc	23.1 cu. in./lb.	3,390 psi	150,700 psi	5,140 psi	57,600 psi	5,450 psi	0.0111 in. / in.	131 °F	15.1 %	148,900 psi	200 cps	1A:1B	104A:100B	2.5 min.	73	Off-White	200 cps	10 min.	2.5 min.	5,450 psi	148,900 psi	23.1 cu. in./lb.	1.2 g/cc	104A:100B	0.0111 in. / in.	1A:1B	3,390 psi	15.1 %	73	131 °F	5,140 psi	150,700 psi	57,600 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 8	15 min.	1.09 g/cc	25.4 cu. in./lb.	5,840 psi	246,000 psi	8,760 psi	77,400 psi	8,280 psi	0.01 in. / in.	194 °F	4 %	271,000 psi	100 cps	1A:1B	120A:100B	2.5 min.	80	Off-White	100 cps	15 min.	2.5 min.	8,280 psi	271,000 psi	25.4 cu. in./lb.	1.09 g/cc	120A:100B	0.01 in. / in.	1A:1B	5,840 psi	4 %	80	194 °F	8,760 psi	246,000 psi	77,400 psi	-	-	263 °F	263 °F	-	-	-	-	-	-
TASK™ 11	16 h.	1.12 g/cc	24.7 cu. in./lb.	2,500 psi	-	-	-	-	0.0024 in. / in.	-	100 %	-	2,000 cps	-	100A:100B	20 min.	60	Translucent White	2,000 cps	16 h.	20 min.	-	-	24.7 cu. in./lb.	1.12 g/cc	100A:100B	0.0024 in. / in.	-	2,500 psi	100 %	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TASK™ 12	16 h.	1.08 g/cc	26 cu. in./lb.	2,700 psi	-	-	-	-	0.001 in. / in.	-	300 %	-	2,400 cps	-	100A:44B	20 min.	60	Clear Amber	2,400 cps	16 h.	20 min.	-	-	26 cu. in./lb.	1.08 g/cc	100A:44B	0.001 in. / in.	-	2,700 psi	300 %	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TASK™ 13	20 min.	1.15 g/cc	24.1 cu. in./lb.	1,800 psi	-	-	-	-	0.005 in. / in.	-	125 %	-	800 cps	-	100A:120B	3 min.	50	Black	800 cps	20 min.	3 min.	-	-	24.1 cu. in./lb.	1.15 g/cc	100A:120B	0.005 in. / in.	-	1,800 psi	125 %	50	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TASK™ 14	45 min.	1.15 g/cc	24.1 cu. in./lb.	1,800 psi	-	-	-	-	0.0035 in. / in.	-	125 %	-	800 cps	-	100A:120B	10 min.	50	Black	800 cps	45 min.	10 min.	-	-	24.1 cu. in./lb.	1.15 g/cc	100A:120B	0.0035 in. / in.	-	1,800 psi	125 %	50	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TASK™ 15	1 h.	1.12 g/cc	24.7 cu. in./lb.	2,720 psi	126,000 psi	5,450 psi	60,000 psi	5,450 psi	0.0042 in. / in.	117 °F	20 %	170,000 psi	600 cps	-	75A:100B	6 min.	75	Opaque White	600 cps	1 h.	6 min.	5,450 psi	170,000 psi	24.7 cu. in./lb.	1.12 g/cc	75A:100B	0.0042 in. / in.	-	2,720 psi	20 %	75	117 °F	5,450 psi	126,000 psi	60,000 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 16	24 h.	1.08 g/cc	25.64 cu. in./lb.	2,264 psi	-	-	-	-	0.0025 in. / in.	-	233 %	-	1,400 cps	-	1A:2B	6 min.	30	Light Yellow	1,400 cps	24 h.	6 min.	-	-	25.64 cu. in./lb.	1.08 g/cc	1A:2B	0.0025 in. / in.	-	2,264 psi	233 %	30	-	-	-	-	90 min.	90 min.	-	-	80	197 pli	855 psi	855 psi	197 pli	80
TASK™ 18	16 h.	1.57 g/cc	17.6 cu. in./lb.	3,250 psi	514,000 psi	8,420 psi	97,300 psi	10,700 psi	0.0006 in. / in.	149 °F	1 %	86,000 psi	4,400 cps	-	26A:100B	20 min.	88	Metal Gray	4,400 cps	16 h.	20 min.	10,700 psi	86,000 psi	17.6 cu. in./lb.	1.57 g/cc	26A:100B	0.0006 in. / in.	-	3,250 psi	1 %	88	149 °F	8,420 psi	514,000 psi	97,300 psi	-	-	-	-	-	-	-	-	-	-
TASK™ 21	1 h.	1.07 g/cc	25.9 cu. in./lb.	5,500 psi	270,000 psi	7,100 psi	78,500 psi	7,100 psi	0.0058 in. / in.	144 °F	7.5 %	250,000 psi	500 cps	2A:1B	2A:1B	6 min.	75	White	500 cps	1 h.	6 min.	7,100 psi	250,000 psi	25.9 cu. in./lb.	1.07 g/cc	2A:1B	0.0058 in. / in.	2A:1B	5,500 psi	7.5 %	75	144 °F	7,100 psi	270,000 psi	78,500 psi	-	-	-	-	-	-	-	-	-	-

Danger
