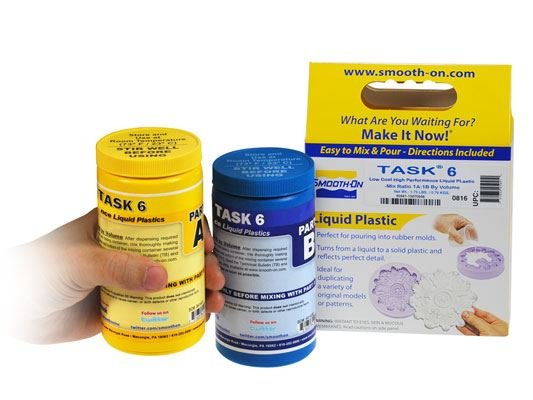

TASK™ 6

task6pint ⓘ D67DB9F0-590D-524A-A431-FADC9C30889E
Polyurethane Resin

High-performance casting resin with superior physical properties.

  • Shore Hardness: 75D
  • Mix Ratio: 1:1 by volume/weight
  • Working time: 7 min
  • Cure Time: 24 hrs
  • Tensile Strength: 35.85 MPa
  • Heat Deflection Temp: 72°C
exclamation.svg health-hazard.svg

Danger

H315 - Causes skin irritation.
H317 - May cause an allergic skin reaction.
H320 -
H332 - Harmful if inhaled.
H334 - May cause allergy or asthma symptoms or breathing difficulties if inhaled.
€ 24.28

(€ 20.07 without 21% VAT)

In stock

Description

This casting resin is designed for industrial applications, offering high tensile and flexural strength with a high flexural modulus.

TASK™ 6 is suitable for casting up to 1.27 cm (½ inch) thick without vacuum degassing, featuring a 1A:1B mix ratio by volume or weight.

Technical Properties

  • Mix Ratio By Volume: 1A:1B
  • Mix Ratio By Weight: 1A:1B
  • Working time: 7 minutes
  • Handling Time: 75 minutes
  • Cure Time: 24 hours
  • Shore Hardness: 75D
  • Specific Gravity: 1.07 g/cc
  • Specific Volume: 0.93 cm³/g
  • Color: Tan
  • Elongation@Break: 4%
  • Tensile Strength: 35.85 MPa
  • Tensile Modulus: 1,006,000 kPa
  • Flexural Strength: 42.75 MPa
  • Flexural Modulus: 1,259,000 kPa
  • Compressive Strength: 38.41 MPa
  • Heat Deflection Temp: 72°C
  • Compressive Modulus: 448,000 kPa
  • Shrinkage: 0.0031 mm/mm
  • Mixed Viscosity: 800 mPa·s

Cured castings are rigid and durable, resisting moisture, moderate heat, solvents, and dilute acids.

They can be machined, primed/painted, or bonded to other surfaces and displayed outdoors after priming and painting.

Instructions

Storage and Environment

Store and use materials in a warm environment at 23°C. Use as soon as possible due to limited shelf life. Liquid urethanes are moisture sensitive. Use clean metal, glass, or plastic tools and containers.

Ensure a well-ventilated area and wear safety glasses, long sleeves, and rubber gloves.

Release Agent Application

Apply a release agent for demolding. Use a mold-specific release agent, applying a liberal coat and brushing with a soft brush. Follow with a light mist coating and let dry for 30 minutes. Silicone rubber molds usually do not require a release agent unless casting silicone into the mold.

Measuring and Mixing

Mixing ratio is 1A:1B by weight or volume. Dispense Part A into a container, measure Part B, and combine. Shake or stir both parts before use. Mix thoroughly, scraping sides and bottom of the container. Avoid splashing. If tinting, add tint to Part B before mixing with Part A.

Replace lids immediately after use to prolong shelf life. Use XTEND-IT™ Dry Gas Blanket to extend shelf life.

Pouring

Pour mixture into a rubber mold at the lowest point. For encapsulating objects, let the mixture seek its level to minimize air entrapment.

For Best Results

Use pressure casting at 4.2 kg/cm² for 16 hours after pouring for best results.

Curing

Ensure adequate ventilation and avoid inhaling fumes. Let castings cool to room temperature before handling. Demold time varies with mass and mold configuration. Use rigid foam backfilling for lightweight reinforcement if exposed to temperatures above 30°C (85°F).

Post Curing

Post curing accelerates full cure and enhances properties. Cure for 6-8 hours at room temperature, then 16 hours at 65-72°C. Allow to cool before handling. For thin castings, heat post cure. For thickness over 7.62 cm (3 inches), use consecutive casts with 30-minute intervals for heat dissipation.

Specifications

Color Tan
Mixed Viscocity 800 cps
Cure Time 24 hours
Pot Life 7 minutes
Flexural Strength 6,200 psi
Flexural Modulus 182,500 psi
Specific Volume 25.9 cu. in./lb.
Specific Gravity 1.07 g/cc
Mix Ratio By Weight 1A:1B
Shrinkage 0.0031 in. / in.
Mix Ratio By Volume 1A:1B
Tensile Strength 5,200 psi
Elongation At Break 4 %
Shore D Hardness 75
Heat Deflection Temp 162 °F
Compressive Strength 5,570 psi
Tensile Modulus 146,000 psi
Compressive Modulus 65,000 psi
Handling Time 75 minutes
Available in Polyurethane Resin
Product Cure Time Specific Gravity Specific Volume Color Tensile Strength Tensile Modulus Compressive Strength Compressive Modulus Flexural Strength Shrinkage Heat Deflection Temp Elongation At Break Flexural Modulus Mixed Viscocity Mix Ratio By Volume Mix Ratio By Weight Pot Life Shore D Hardness Color Mixed Viscocity Cure Time Pot Life Flexural Strength Flexural Modulus Specific Volume Specific Gravity Mix Ratio By Weight Shrinkage Mix Ratio By Volume Tensile Strength Elongation At Break Shore D Hardness Heat Deflection Temp Compressive Strength Tensile Modulus Compressive Modulus Handling Time Handling Time Heat Deflection With Post Cure Heat Deflection With Post Cure Shore A Hardness Die C Tear Strength Hundred Percent Modulus Hundred Percent Modulus Die C Tear Strength Shore A Hardness
TASK™ 2 60 min. 1.12 g/cc 24.7 cu. in./lb. White 6,650 psi 290,000 psi 8,300 psi 78,000 psi 9,500 psi 0.005 in. / in. 134 °F 6 % 288,000 psi 150 cps 1A:1B 115A:100B 7 min. 80 White 150 cps 60 min. 7 min. 9,500 psi 288,000 psi 24.7 cu. in./lb. 1.12 g/cc 115A:100B 0.005 in. / in. 1A:1B 6,650 psi 6 % 80 134 °F 8,300 psi 290,000 psi 78,000 psi - - - - - - - - - -
TASK™ 3 90 min. 1.12 g/cc 24.7 cu. in./lb. White 6,650 psi 290,000 psi 8,300 psi 78,000 psi 9,500 psi 0.0025 in. / in. 134 °F 6 % 288,000 psi 150 cps 1A:1B 115A:100B 20 min. 80 White 150 cps 90 min. 20 min. 9,500 psi 288,000 psi 24.7 cu. in./lb. 1.12 g/cc 115A:100B 0.0025 in. / in. 1A:1B 6,650 psi 6 % 80 134 °F 8,300 psi 290,000 psi 78,000 psi - - - - - - - - - -
TASK™ 4 16 h. 1.167 g/cc 23.9 cu. in./lb. Ivory 6,500 psi 130,000 psi 7,400 psi 75,000 psi 9,000 psi 0.0035 in. / in. 110 °F 4 % 204,000 psi 250 cps - 100A:100B 20 min. 83 Ivory 250 cps 16 h. 20 min. 9,000 psi 204,000 psi 23.9 cu. in./lb. 1.167 g/cc 100A:100B 0.0035 in. / in. - 6,500 psi 4 % 83 110 °F 7,400 psi 130,000 psi 75,000 psi - - - - - - - - - -
TASK™ 5 24 h. 1.1 g/cc 25.2 cu. in./lb. Tan 4,530 psi 200,000 psi 6,700 psi 83,000 psi 6,480 psi 0.007 in. / in. 145 °F 5 % 216,000 psi 600 cps 1A:1B 1A:1B 3 min. 77 Tan 600 cps 24 h. 3 min. 6,480 psi 216,000 psi 25.2 cu. in./lb. 1.1 g/cc 1A:1B 0.007 in. / in. 1A:1B 4,530 psi 5 % 77 145 °F 6,700 psi 200,000 psi 83,000 psi 15 min. 15 min. - - - - - - - -
TASK™ 6 24 h. 1.07 g/cc 25.9 cu. in./lb. Tan 5,200 psi 146,000 psi 5,570 psi 65,000 psi 6,200 psi 0.0031 in. / in. 162 °F 4 % 182,500 psi 800 cps 1A:1B 1A:1B 7 min. 75 Tan 800 cps 24 h. 7 min. 6,200 psi 182,500 psi 25.9 cu. in./lb. 1.07 g/cc 1A:1B 0.0031 in. / in. 1A:1B 5,200 psi 4 % 75 162 °F 5,570 psi 146,000 psi 65,000 psi 75 min. 75 min. - - - - - - - -
TASK™ 7 10 min. 1.2 g/cc 23.1 cu. in./lb. Off-White 3,390 psi 150,700 psi 5,140 psi 57,600 psi 5,450 psi 0.0111 in. / in. 131 °F 15.1 % 148,900 psi 200 cps 1A:1B 104A:100B 2.5 min. 73 Off-White 200 cps 10 min. 2.5 min. 5,450 psi 148,900 psi 23.1 cu. in./lb. 1.2 g/cc 104A:100B 0.0111 in. / in. 1A:1B 3,390 psi 15.1 % 73 131 °F 5,140 psi 150,700 psi 57,600 psi - - - - - - - - - -
TASK™ 8 15 min. 1.09 g/cc 25.4 cu. in./lb. Off-White 5,840 psi 246,000 psi 8,760 psi 77,400 psi 8,280 psi 0.01 in. / in. 194 °F 4 % 271,000 psi 100 cps 1A:1B 120A:100B 2.5 min. 80 Off-White 100 cps 15 min. 2.5 min. 8,280 psi 271,000 psi 25.4 cu. in./lb. 1.09 g/cc 120A:100B 0.01 in. / in. 1A:1B 5,840 psi 4 % 80 194 °F 8,760 psi 246,000 psi 77,400 psi - - 263 °F 263 °F - - - - - -
TASK™ 11 16 h. 1.12 g/cc 24.7 cu. in./lb. Translucent White 2,500 psi - - - - 0.0024 in. / in. - 100 % - 2,000 cps - 100A:100B 20 min. 60 Translucent White 2,000 cps 16 h. 20 min. - - 24.7 cu. in./lb. 1.12 g/cc 100A:100B 0.0024 in. / in. - 2,500 psi 100 % 60 - - - - - - - - - - - - - -
TASK™ 12 16 h. 1.08 g/cc 26 cu. in./lb. Clear Amber 2,700 psi - - - - 0.001 in. / in. - 300 % - 2,400 cps - 100A:44B 20 min. 60 Clear Amber 2,400 cps 16 h. 20 min. - - 26 cu. in./lb. 1.08 g/cc 100A:44B 0.001 in. / in. - 2,700 psi 300 % 60 - - - - - - - - - - - - - -
TASK™ 13 20 min. 1.15 g/cc 24.1 cu. in./lb. Black 1,800 psi - - - - 0.005 in. / in. - 125 % - 800 cps - 100A:120B 3 min. 50 Black 800 cps 20 min. 3 min. - - 24.1 cu. in./lb. 1.15 g/cc 100A:120B 0.005 in. / in. - 1,800 psi 125 % 50 - - - - - - - - - - - - - -
TASK™ 14 45 min. 1.15 g/cc 24.1 cu. in./lb. Black 1,800 psi - - - - 0.0035 in. / in. - 125 % - 800 cps - 100A:120B 10 min. 50 Black 800 cps 45 min. 10 min. - - 24.1 cu. in./lb. 1.15 g/cc 100A:120B 0.0035 in. / in. - 1,800 psi 125 % 50 - - - - - - - - - - - - - -
TASK™ 15 1 h. 1.12 g/cc 24.7 cu. in./lb. Opaque White 2,720 psi 126,000 psi 5,450 psi 60,000 psi 5,450 psi 0.0042 in. / in. 117 °F 20 % 170,000 psi 600 cps - 75A:100B 6 min. 75 Opaque White 600 cps 1 h. 6 min. 5,450 psi 170,000 psi 24.7 cu. in./lb. 1.12 g/cc 75A:100B 0.0042 in. / in. - 2,720 psi 20 % 75 117 °F 5,450 psi 126,000 psi 60,000 psi - - - - - - - - - -
TASK™ 16 24 h. 1.08 g/cc 25.64 cu. in./lb. Light Yellow 2,264 psi - - - - 0.0025 in. / in. - 233 % - 1,400 cps - 1A:2B 6 min. 30 Light Yellow 1,400 cps 24 h. 6 min. - - 25.64 cu. in./lb. 1.08 g/cc 1A:2B 0.0025 in. / in. - 2,264 psi 233 % 30 - - - - 90 min. 90 min. - - 80 197 pli 855 psi 855 psi 197 pli 80
TASK™ 18 16 h. 1.57 g/cc 17.6 cu. in./lb. Metal Gray 3,250 psi 514,000 psi 8,420 psi 97,300 psi 10,700 psi 0.0006 in. / in. 149 °F 1 % 86,000 psi 4,400 cps - 26A:100B 20 min. 88 Metal Gray 4,400 cps 16 h. 20 min. 10,700 psi 86,000 psi 17.6 cu. in./lb. 1.57 g/cc 26A:100B 0.0006 in. / in. - 3,250 psi 1 % 88 149 °F 8,420 psi 514,000 psi 97,300 psi - - - - - - - - - -
TASK™ 21 1 h. 1.07 g/cc 25.9 cu. in./lb. White 5,500 psi 270,000 psi 7,100 psi 78,500 psi 7,100 psi 0.0058 in. / in. 144 °F 7.5 % 250,000 psi 500 cps 2A:1B 2A:1B 6 min. 75 White 500 cps 1 h. 6 min. 7,100 psi 250,000 psi 25.9 cu. in./lb. 1.07 g/cc 2A:1B 0.0058 in. / in. 2A:1B 5,500 psi 7.5 % 75 144 °F 7,100 psi 270,000 psi 78,500 psi - - - - - - - - - -
