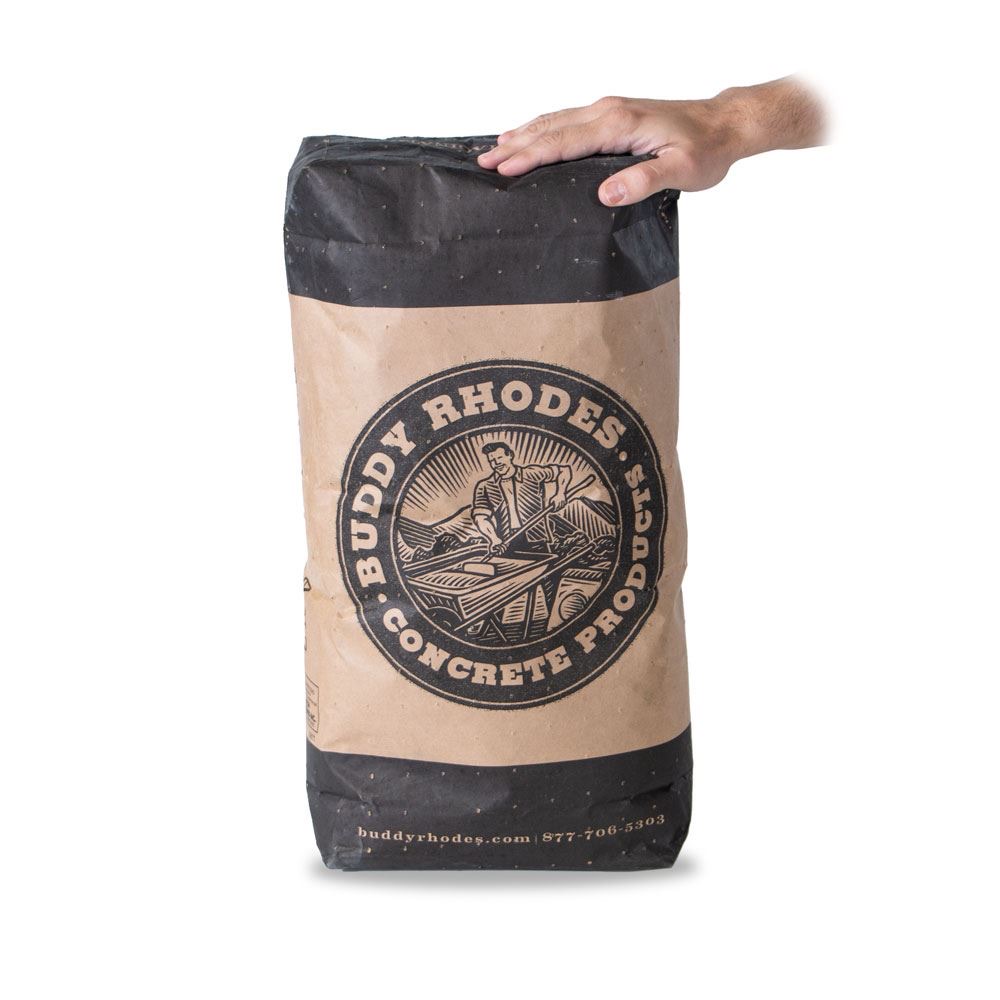

BR Vertical Mix™ /15,4 kg

Buddy Rhodes Vertical Mix™ is a flame rated (E84 – Class A) cement-based overlay that is troweled onto vertical surfaces and carved, sculpted or stamped to create rock, stone, tile and other textures. For interior or exterior areas, this lightweight, zero slump formula is used for a variety of applications including creating themed structures for amusement parks, zoo & aquarium displays*, architectural panels,landscape elements and public sculpture. With Buddy Rhodes' extensive line of color pigments and glazes, the finishing possibilities are endless

- Non-Toxic: Animal Friendly, No VOC’s and Water Based
- Flame Rated: Certified to the highest ASTM fire rating; E-84 Class A/1
- Easy to Use & Versatile: Mix, apply, carve and texture quickly over a variety of surfaces; easily colored with Buddy Rhodes Pigments & Glazes
- Economical: Build large, lightweight, thin structures at a fraction of the cost
- Lightweight: Up to 30% lighter than other concrete mixes with better coverage per bag.

IMPORTANT: You Must Use RAMP™ Adhesion and Cure Promoter with the Buddy Rhodes Vertical Mix™.

Instructions

Surface Preparation Quick Reference Guide

Wire Lath - Lath provides a uniform surface that Vertical Mix will mechanically bond to. It can be fastened directly to most substrates to increase adhesion or to bridge unstable areas of an otherwise sound surface. Lath can be combined with structural elements to create large scale armatures. Wire lath should always be used when applying Vertical Mix in exterior freeze-thaw environments to ensure longterm stability

Wood Surfaces - Wood should be painted or sealed prior to priming with Buddy Rhodes RAMP and applying Vertical Mix. Optionally, tar paper followed by wire lath can be fastened to provide mechanical bond.

Painted Surfaces, Interior - Sand surfaces to create mechanical tooth, then prime before applying Buddy Rhodes Vertical Mix. Optionally, wire lath can be fastened to provide mechanical bond.

Foam (EPS) Surfaces, Interior - Remove any loose foam and prime all surfaces before applying Buddy Rhodes Vertical Mix.

Drywall - Clean and prime surfaces before applying Buddy Rhodes Vertical Mix. Optionally, wire lath can be fastened to provide mechanical bond.

Cured Concrete - Clean all surfaces thoroughly. Acid etching or abrasion may be necessary on smooth surfaces. Prime all surfaces before applying Buddy Rhodes Vertical Mix. Wire lath should be applied over exterior surfaces in freeze-thaw environments.

Surface Preparation - Vertical Mix can be applied to a variety of surfaces, provided the surface is clean and stable. Any loose material should be repaired or removed prior to surface preparation.

Priming Surfaces with Buddy Rhodes RAMP: Buddy Rhodes RAMPTM is an economical bonding primer and cure promoter. Add 100 parts of clean water to 100 parts RAMP (50/50) into a spray bottle, pump sprayer, or similar. Shake vigorously. Spray an even, thin coating of primer on all surfaces and allow to become tacky (partially dry, sticky to the touch) before applying Vertical Mix. If primer dries completely, reapply and wait until tacky before proceeding.

Standard Recipe for Buddy Rhodes Vertical Mix:

- By Weight - 100 Parts Vertical Mix -8.82 Parts Buddy Rhodes RAMP - 22.06 Parts Water.

- By Volume - 1 Bag of Vertical Mix - 1.24 liter Buddy Rhodes RAMP - 3.4 liters Water.

Preparation - Getting Ready to Mix

Have all ingredients assembled before you start. Wear vinyl or nitrile gloves, protective eye wear and a dust mask. Use an accurate scale for weighing components. Use materials between 10°C - 32°C. Colder temperatures will slow the reaction and warmer temperatures will accelerate it. Preparations should be made to ensure that the applied material is not exposed to rain or temperatures below 10°C for the first 48 hours.

The temperature of the Vertical Mix is also important and will affect the outcome. Once the temperature of the mixreaches 21°C, the reaction begins to accelerate. Using a laser thermometer to monitor, keeping the temperature of the mix near 15° C. In warm environments, substitute up to 50% by weight of the water with ice. Vertical Mix has a shelf life of 1 year after purchase if kept in a dry, moisture free environment. Once opened, the material should be used as soon as possible.

Mixing Instructions

Use clean, potable water and clean mixing vessels. Use a handheld mortar mixer to blend. If mixing on a regular basis or for a large project, investing in a larger mortar mixer may be justified.

Measuring and Mixing: Combine water and RAMP into a clean mixing container. If you are adding a Buddy Rhodes color pigment, disperse the pigment into the liquid at this time. Slowly add the Vertical Mix into the liquid and blend with a mechanical mixer until homogenous. Use a margin trowel to scrape the sides of the pail to ensure there is no dry, unmixed material remaining. Continue mixing, adding up to 475 ml of additional water per bag to reach desired consistency.

Applying: Spread the blended Vertical Mix onto the chosen surface. Material can be applied by hand, by trowel, or witha mortar sprayer. To ensure the strongest bond it is often best to spread a thin layer onto the surface first, followed immediately by a thicker build. Maintain a minimum thickness of 19 mm.

Stamping/Texturing: While the mix is in the plastic state, it can be easily stamped with texture mats or rollers. A liquid release should be applied to the mat or roller to avoid sticking of the material.

Carving/Sculpting: When used at room temperature 23°C, Vertical Mix will reach initial set in 1-2 hours (depending on environmental conditions). The material will continue to get firmer as time passes. Various techniques can be used to carve and detail the design using plastic, wood or metal sculpting tools. Note: If the entire mass of the newly applied material moves excessively while tooling, stop and allow for longer cure before proceeding.

Post texturing/Coloring: Allow the material to cure for at least 16 hours. Cured Vertical Mix may be topically colored with acid stains or water-based color stains such as Buddy Rhodes Glazes. The most realistic coloring will be achieved with various layers of multiple colors and concentrations. Allow all topical colors to completely dry before applying any concrete sealer

Sealing

Concrete is an inherently porous material and should be sealed for particular environments and uses. Allow the concrete to cure for at least 7 days before sealing. Choose the sealer that best fits the needs of the finished piece and the skill level of the person applying it. Exposures to excessive sun and water will determine the best sealer suitable for the application. Buddy Rhodes offers a variety of sealer options, which can be found on our website

Cast Recipe for Buddy Rhodes Vertical Mix

Vertical Mix - 15.4 kg / RAMP - 1.36 kg / Water - 3.4-3.85 liter / Water Reducer 555 - 120-150 ml / Reinforcement Alkali Resistant Glass Fiber - 0.56 - 0.68 kg

Cast Technique

Because it is so lightweight, Vertical Mix is also a great option for casting objects that are up to 30% lighter than those made with other mixes. Use for casting art and sculpture, countertops and more. This recipe is made flowable by the addition of Water Reducer 555. AR Glass Fibers can be added to the mix as a reinforcing backer layer for improved
strengths. After initial blending, slowly add the fiber to the mix. Blend until homogeneous.

**Use of Buddy Rhodes Vertical Mix Under Water in Aquarium Displays

Cured Buddy Rhodes Vertical Mix is durable for use underwater on a long term basis. However, like any other Portland cement based material, freshly cured Vertical Mix will cause a spike in the water’s pH level. This change in pH may affect the health of wildlife in the water, and steps may be necessary to reduce risk.

Reducing Risk: Users report that pH values are easier to control if Vertical Mix is allowed to cure for at least 28 days before submerging. This is typically followed by multiple full water changes to soak and flush the Vertical Mix. Regular monitoring and adjustment of pH (and other water quality factors) are necessary to ensure a healthy habitat. Testing should be performed to determine suitability for your particular needs.

Useful Temperature Range of Cured Vertical Mix

Fully cured, Buddy Rhodes Vertical Mix has a useful temperature range of -40°C to 93°C. Vertical Mix has excellent freeze/thaw resistance. Applying a sealer is recommended to further reduce water penetration and enhance. durability in freeze/thaw environments.

Although Vertical Mix is flame rated, certified to E-84/Class A, the rules for heat resistance are generally the same as other Portland Cement based concrete materials. If the concrete is rapidly exposed to heat above 93°C, the moisture trapped in the concrete may quickly expand and crack or spall the surface. We do not recommend Vertical Mix for direct flame contact for extended periods for this reason.
